Sail Plan and Design Ratios

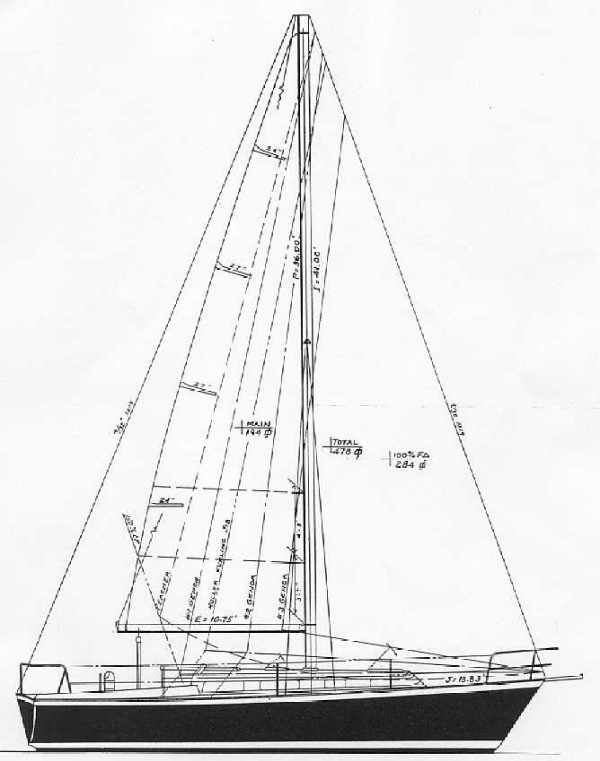

Sail Plan
| Rig Dimensions** | |
| Sail Area (sq ft) | 478 |
| Main Area (sq ft) | 194 |
| ForeTri (sq ft) | 283 |
| I (ft) | 41 |
| J (ft) | 13.8 |
| P (ft) | 360 |
| E (ft) | 10.8 |
| Forestay (calculated) | 43.26 |
| PHRF | 186 |
Approx. Sail Sizes
| Luff | Foot | Leech | Sq Ft | |
| Main | 36 | 10.75 | 37 | 194 |
| Genoa (#1) | 41.1 | 22.47 | 38.52 | 462 |
| 100% Jib (#3) | 34.6 | 18.5 | 29.8 | 320 |
| Blade (#4) (~90%) | 32.8 | 11-14' (high cut) | 28' | 230 |
| Asym Spinnaker | 41.11 | 22.82 | 37.82 (36) | 469 |
